HIKVISION DS-3T0506HP-E/HS(O-STD 4 PORT 10/100/1000 3XGIGA POE + 1XGIGA Hİ-POE 2 X SFP 60W YONETILEMEZ SWITCH

Hikvision DS-3T0506HP-E/HS

4 Port Gigabit Unmanaged Harsh POE Switch

• 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Wire-speed forwarding.
• Wider temperature (-30 to 65 °C) design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

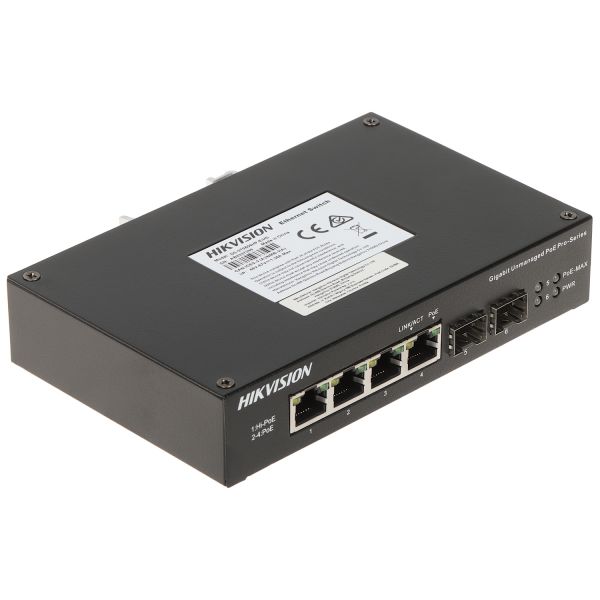

1 - LAN + Hi-PoE
2 - LAN + PoE
3 - LAN + PoE
4 - LAN + PoE
5 - SFP
6 - SFP

Mounting side view:

Side view:

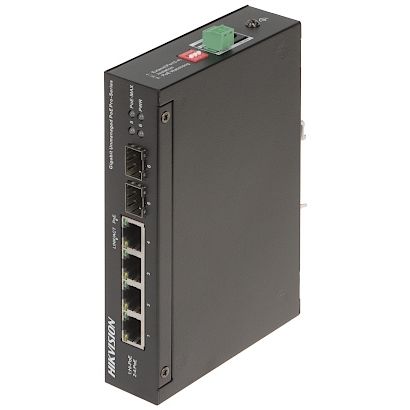

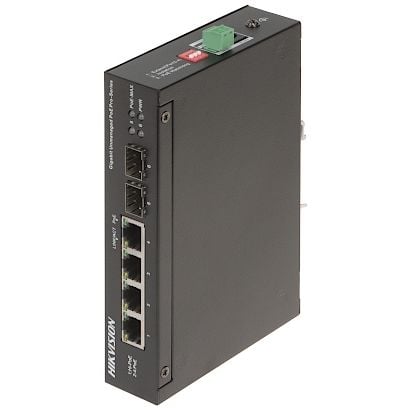

The device can be mounted vertically on a DIN TS-35 rail:

Available models:

DS-3T0506HP-E/HS

Specification

Network Parameters

• Limanlar3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit fiber optical ports
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working ModeStandard mode (default), Extend mode, Isolation mode, PoE watchdog mode
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
• Forwarding ModeStore-and-forward switching
• MAC Address Table2 K
• Switching Capacity12 Gbps
• Internal Cache1 Mbits
• Packet Forwarding Rate8.928 Mpps
• Ports For Long-Distance TransmissionPorts 3 and 4

• PoE Power Supply
• PoE Standard

  Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

  Ports 2 to 4: IEEE 802.3af, IEEE 802.3at

• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPorts 2 to 4
• Max. Port Power

  Port 1: 60 W

  Ports 2 to 4: 30 W

• PoE Power Budget60 W

• Dialing Function
• Long RangePorts 3 and 4: up to 300 m.
• Port IsolationPorts 1 to 4: port isolation mode to improve network security.
• PoE WatchdogPorts 1 to 4: auto detect and restart the cameras that do not respond.

• General
• Dimensions (W × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
• ShellMetal material, fan-free design
• Gross Weight0.94 kg (2.07 lb)
• Net Weight0.38 kg (0.84 lb)
• Operating Temperature-30 °C to 65 °C (-22 °F to 149°F)
• Operating Humidity5% to 95% (no condensation)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Power Consumption In Idle< 5 W
• Power Supply48 to 57 VDC, 1.35 A Max.
• Max. Power Consumption65 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
