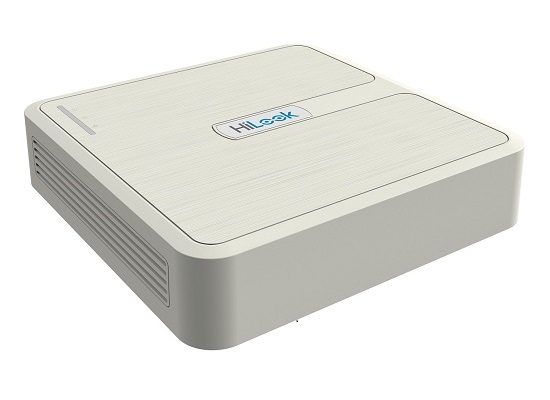

HiLook NVR-104-B/4P 4 Kanal Poe NVR Kayıt Cihazı
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
HiLook NVR-104-B/P4 4 Kanal Poe NVR Kayıt Cihazı
• Maks. giriş 40 Mbps; 4 kanala kadar IP kamera girişi. 4 kanal 1080p veya 2 kanal 4 MP kod çözme kapasitesi • H.264 ve H.264+ desteği• 1 SATA arayüzü, 6 TB’ye kadar • 4 PoE arayüzünü destekler
| NVR-104B/4P |
|---|
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 4-ch | |
| Network | ||
|---|---|---|
| Incoming bandwidth: | 40Mbps | |
| Outgoing bandwidth: | 40Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz,
1280 × 720 /60Hz, 1024 × 768 /60Hz |
|
| Recording Resolution: | 4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Decoding | ||
|---|---|---|
| Capability: | 2-ch@4 MP, 4-ch@1080p | |
| Live view / Playback: | 4 MP/3 MP/1080p/1.3 MP/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIF | |
| Hard Disk | ||
|---|---|---|
| SATA: | 1 SATA interface for 1 HDD | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Built-in switch network interface: | 4 independent 100 Mbps built-in switch network interfaces |
|
| Network Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface |
|
| USB Interface: | 2, USB2.0 | |
| POE | ||
|---|---|---|
| Supported Standard: | AF and AT | |
| Interface: | 4 independent 100 Mbps PoE network interfaces |
|
| Max. Power: | 36W | |
| General | ||
|---|---|---|
| Power Supply: | 48 VDC | |
| Consumption(without hard disk and POE): | ≤ 10 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 1U chassis | |
| Dimensions: | 200 × 205 × 48 mm (7.9" × 8.1" × 1.9") |
|
| Weight(without HDD): | ≤ 1 kg (2.2 lb) | |
