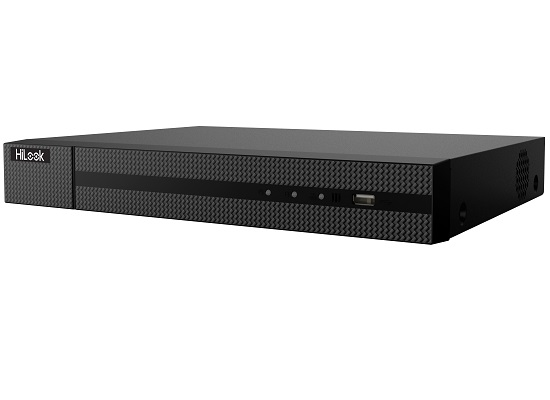

HiLook NVR-104MH-C 4 Kanal NVR Kayıt Cihazı
0,00 ₺
KdvDahil
0,00 ₺
(%3,00 havale indirimi)
Fiyat Sorunuz
Fiyat Sorunuz
HiLook NVR-104MH-C 4 Kanal NVR Kayıt Cihazı
• Maks. giriş 40 Mbps; 4 kanala kadar IP kamera girişi
• 4-kanal 1080p kod çözme kapasitesi • H.265/H.265+, H.264/H.264+ desteği • 1 SATA arayüzü, 6 TB’ye kadar • Bağımsız 1U kasa [metal]
| NVR-104MH-C |
|---|
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 4-ch | |
| IP Video input: | Up to 8 MP resolution | |
| Network | ||
|---|---|---|
| Incoming bandwidth: | 40Mbps | |
| Outgoing bandwidth: | 80Mbps | |
| Video/Audio Output | ||
|---|---|---|
| LCD/HDMI/VGA output resolution: | HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; VGA: 1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; HDMI/VGA simultaneous output |
|
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Synchronous Playback: | 4-ch | |
| Decoding | ||
|---|---|---|
| Capability: | 1-ch @ 8 MP / 4-ch @ 1080p | |
| Hard Disk | ||
|---|---|---|
| SATA: | 1 SATA interface for 1 HDD | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
| USB Interface: | 2, USB2.0 | |
| POE | ||
|---|---|---|
| Supported Standard: | AF and AT | |
| Interface: | 4 independent 10 /100 Mbps PoE Ethernet interfaces |
|
| Max. Power: | 50W | |
| General | ||
|---|---|---|
| Power Supply: | 48 VDC | |
| Power: | ≤ 65 W | |
| Consumption(without hard disk and POE): | ≤ 10 W (without enabling PoE) | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 1U chassis | |
| Dimensions: | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
| Weight(without HDD): | ≤ 1 kg (2.2 lb) | |
