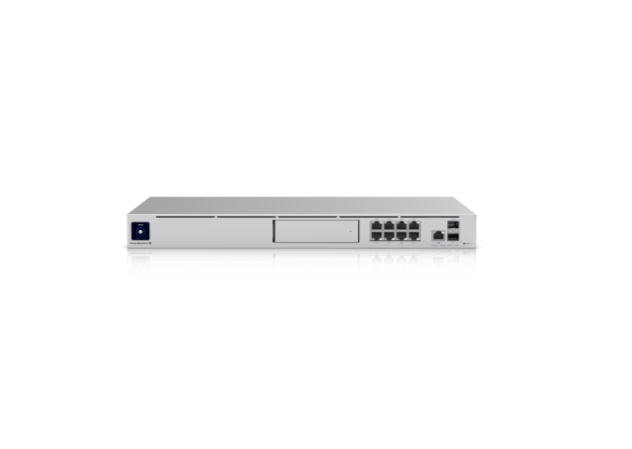

UniFi Dream Machine Special Edition

UniFi Dream Machine Special Edition UDM-SE

Mechanical

Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

Weight: 4.95 kg (10.9 lb)

Enclosure materials: Aluminium CNC, SGCC steel

Mount material: SGCC steel

Hardware

Processor: Quad-core ARM® Cortex® -A57 at 1.7 GHz

System memory: 4 GB DDR4

On-board storage: 16 GB eMMC Integrated 128 GB SSD

Managementinterface: Ethernet Bluetooth

Networking interface: (8) LAN: GbE RJ45 ports (1) WAN: 2.5 GbE RJ45 port

SFP+ interface: (1) LAN: 10G SFP+ (1) WAN: 10G SFP+

PoE interface: (6) PoE (Pair A 1, 2+; 3, 6-) (2) PoE+ (Pair A 1, 2+; 3, 6-)

IDS/IPS throughput: 3.5 Gbps* *MeasuredwithiPerf3

Power method: (1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 3.94A

Power supply: AC/DC, internal, 240W

Supported voltage range: 100—240V AC

Max. power consumption: 50W (Excluding PoE output)

Max. PoE wattage per port by PSE: PoE: 15.4W

PoE+: 30W

Voltage range PoE mode PoE: 44—57V

PoE+: 50—57V

ESD/EMP protection Air: ± 15kV, contact: ± 8kV

LCM display: (1) 1.3" touchscreen

Button: Factory reset

Operating temperature: -10 to 40° C (14 to 104° F)

Operating humidity: 5 to 95% noncondensing

Certications: CE, FCC, IC


LEDs

Ethernet White: link/activity

SFP+ White: link/activity

HDD White: disk activity

Amber: disk error
